A clock in the rocks: what cosmic rays tell us about Earth’s changing surface and climate

Photo / Jamey Stutz, CC BY-SA

By Shaun Eaves, Te Herenga Waka — Victoria University of Wellington; Jamey Stutz, The Ohio State University; Kevin Norton, Te Herenga Waka — Victoria University of Wellington, and Pedro Doll, University of Canterbury

How often do mountains collapse, volcanoes erupt or ice sheets melt?

For Earth scientists, these are important questions as we try to improve projections to prepare communities for hazardous events in the future.

We rely on instrumental measurements, but such records are often short. To extend these, we use geological archives. And at the heart of this research is geochronology – a toolkit of geological dating methods that allow us to assign absolute ages to rocks.

Scientists standing on a bluff to examine rocks in Antarctica
Scientists study rock surfaces in Antarctica to reconstruct past ice sheet change.
Shaun Eaves, CC BY-SA

In recent years, we have been using a state-of-the-art technique known as cosmogenic surface exposure dating which allows us to quantify the time a rock has spent on the surface, exposed to signals from outer space.

Advertisement
GreatBarrier.co.nz - Great Barrier Island Awaits: Experience the Magic.

Using cosmic rays as a clock

Earth is constantly bombarded by high-energy charged particles, known as cosmic rays, coming from the depths of our galaxy. Most are intercepted by Earth’s magnetic field and atmosphere. But some are sufficiently energetic to reach Earth’s surface.

On impact, they break apart atoms of common elements in Earth’s crust, such as silicon and oxygen, to create new rare elements known as cosmogenic nuclides.

Advertisement
Waves, Woods, and Wonders: Discover Aotea, Great Barrier Island

The presence of cosmogenic nuclides in rocks and sediments at the Earth’s surface is a clear indicator of atmospheric exposure. Their abundance tells us how long the rock has been exposed.

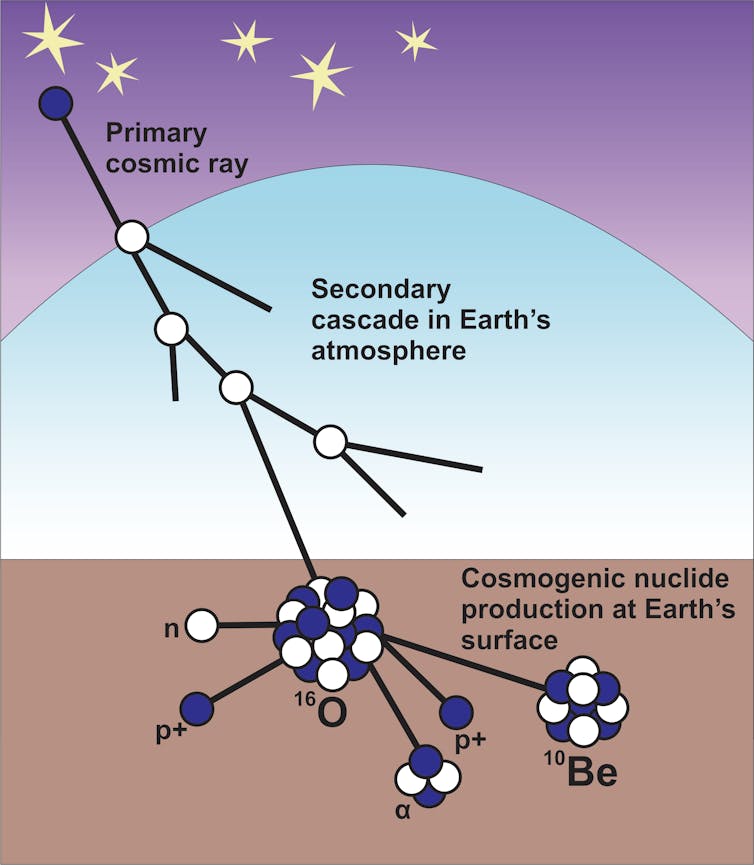

Schematic diagram of cosmogenic nuclide production by cosmic rays
Cosmic rays break apart atoms in the Earth’s crust to create new rare elements known as cosmogenic nuclides.
Shaun Eaves, CC BY-SA

Cosmic rays were first discovered in the early 1900s, but it took almost a century until sufficiently sensitive particle accelerators became available to accurately count the small number of rare atoms produced when they hit Earth.

Advertisement
Advertise with AoteaGBI.news

Today, cosmogenic surface exposure dating represents a primary technique for quantifying the rates and dates of several processes on Earth’s surface.

Timing mountain collapse

In southeast Fiordland, the Green Lake landslide is one of the largest landslides on Earth. Its large size is especially unusual given the relatively small stature of the mountains from which it came.

Aerial photograph of an ancient landslide deposit now covered in trees
The Green Lake landslide, now covered in trees, is among the world’s largest.
Lloyd Homer/GNS Science (VML ID: 3918), CC BY-SA

Previous research suggested the landslide was induced by the retreat of a large glacier that formerly supported the mountainside.

Given ongoing glacial retreat today, we sought to test this hypothesis by collecting boulders on the surface of the Green Lake landslide. These rocks had previously been shielded from cosmic rays in the mountain interior before becoming exposed by the landslide.

Our measurements yielded an exposure age of about 15,500 years, which postdates the end of the last ice age in the Southern Alps by 3,000 to 4,000 years. From this result, we conclude that deglaciation is unlikely to have been the primary cause of this spectacular mountain collapse. Instead, our findings point to an extremely large earthquake as the more likely trigger.

How often do volcanoes emit lava?

Effusive (lava-producing) volcanic eruptions have built the large cone of Mt Ruapehu, the highest mountain in the North Island.

Despite some explosive episodes during the 20th century, there is no observational record of eruptions producing lava flows. Future effusive events could fundamentally reshape the volcanic cone, with potential implications for local infrastructure.

But how often do such eruptions happen?

Scientist sitting on an outcrop, recording notes about a rock sample
Cosmogenic dating of rocks on Mt Ruapehu found the mountain ejects lava in clusters of eruptive activity.
Pedro Doll, CC BY-NC-SA

Supported by the Resilience to Nature national science challenge, we tested whether cosmogenic dating could help us determine recurrence intervals of lava-producing eruptions on Mt Ruapehu over the past 20,000 years.

We found the mountain ejected lava in clusters of eruptive activity which could last for millennia. The cosmogenic data also provided more precise dates for recent prehistoric eruptions, compared to those produced by other common volcanic dating techniques such as palaeomagnetic and radiometric methods.

Tracking the melting of ice

Before cosmogenic nuclide measurements, glacial geologists trying to determine the age of sediments relied on serendipitous discoveries of fossil plant material for radiocarbon dating. In alpine and polar regions, where most glaciers are, such matter is rarely available.

Cosmogenic nuclides solve this problem as glaciers quarry rocks from their base and transport them to the surface where they rest on hill slopes and moraines and begin accumulating their cosmic signal.

With support from the New Zealand Antarctic Science Platform, we have applied this technique to reconstruct the recent evolution of Byrd Glacier – a large outlet of the East Antarctic Ice Sheet.

Glacial cobbles, transported from the Antarctic interior and deposited on hillsides on either side of the flowing glacier, track how high the glacier was in the past.

Our study shows that the glacier thinned by at least 200 metres about 7,000 years ago during an interval of relative global climate stability. These results provide rare three-dimensional information that can be used to evaluate computer models used to simulate past, present and future ice sheet change.

Lonewolf Nunataks, Byrd Glacier, East Antarctica
Scientists scour rock outcrops at Byrd Glacier for evidence of past cover by glacier ice.
Shaun Eaves, CC BY-SA

Rising sea level is one of the biggest challenges facing civilisation this century. However, the uncertain response of ice sheets to climate change currently hampers projections.

Cosmogenic nuclide specialists are now ambitiously attempting to recover rock samples from beneath sensitive portions of the present ice sheets. Testing them for cosmic signals will yield important insights about the potential of future melting of ice sheets.The Conversation

Shaun Eaves, Senior Lecturer in Physical Geography, Te Herenga Waka — Victoria University of Wellington; Jamey Stutz, Assistant Director Polar Rock Repository, Byrd Polar and Climate Research Center, The Ohio State University; Kevin Norton, Associate Professor in Geochemistry, Te Herenga Waka — Victoria University of Wellington, and Pedro Doll, PhD candidate, University of Canterbury

This article is republished from The Conversation under a Creative Commons license. Read the original article.
